Payment terminals
Choose the appropriate payment terminal for your business. In a semi-integrated solution, the terminal drives the payment transaction with input from the POS. The POS system pushes a request, with the transaction type and amount, to the terminal. The terminal collects card data from the customer and sends the request to the payment processor. Our In-Store Payments solution is pre-certified, secure, and leverages the capabilities of the POS without increasing PCI scope.
Terminal comparison
Refer to the following chart to compare terminal models across various features and specs.
| Feature | |||||
|---|---|---|---|---|---|
| Environment | Retail and QSR (multi-lane and multi-media) | High volume in-store, drive-thru, and self-checkout | Countertop and self-checkout | Portable service, mobile retail, and standalone | Mobile retail and line busting |
| Connectivity | Ethernet, USB, and Wi-Fi | Ethernet, USB, and Wi-Fi | Ethernet, Wi-Fi, and USB | 4G and Wi-Fi | 4G and Wi-Fi |
| Cellular | No | No | No | 4G | 4G (fallback 3G and GPRS) |
| OS | Android 11 | Android 11 | Android 10 | Android 10 | Android 10 |
| Display | 5.5" touchscreen | 4" touchscreen | 5" touchscreen | 6" touchscreen | 6" touchscreen |
| Keypad | Physical | Physical | Virtual | Virtual | Virtual |
| Camera | Front 5 MP and rear 0.3 MP | Rear 0.3 MP | Front 0.3 MP | Front 2 MP and rear 8 MP | Front 2 MP and rear 8 MP |
| Barcode reader | No | No | No | Yes | Yes |
| Printer | No | No | Yes | Yes | No |
| Battery | NA | NA | 2200 mAh | 3350 mAh | 4040 mAh |
| Offline processing | Yes | Yes | Yes | Yes | Yes |
| PIN Debit supported | Yes | Yes | Yes | Yes | Yes |
| PCI PTS | v6 (expires April 2032) | v6 (expires April 2032) | v6 (expires April 2032) | v6 (expires April 2032) | v6 (expires April 2032) |
Terminal models
Process J.P. Morgan In-Store Payments with one of the following multi-form factor payment terminal devices of the Ingenico AXIUM line. Types of secure payment terminals include: countertop, PIN pad, mobile payment terminal, and mPOS or dongle.
Ingenico AXIUM RX7000
Ingenico AXIUM RX7000
- Ideal for retail and QSR, multi-lane, and multimedia
- Accepts payments via tap, insert, and swipe
- 5.5" touchscreen, front and rear cameras
- Large form factor, physical keypad
- Ethernet, USB, and Wi-Fi connectivity
- Android 11, PCI PTS v6
- Size: 5.9 x 6.4 x 1.1" (151 x 163 x 27 mm)
- Built-in PCI-compliant privacy shield
- Integrated stand available, sold separately

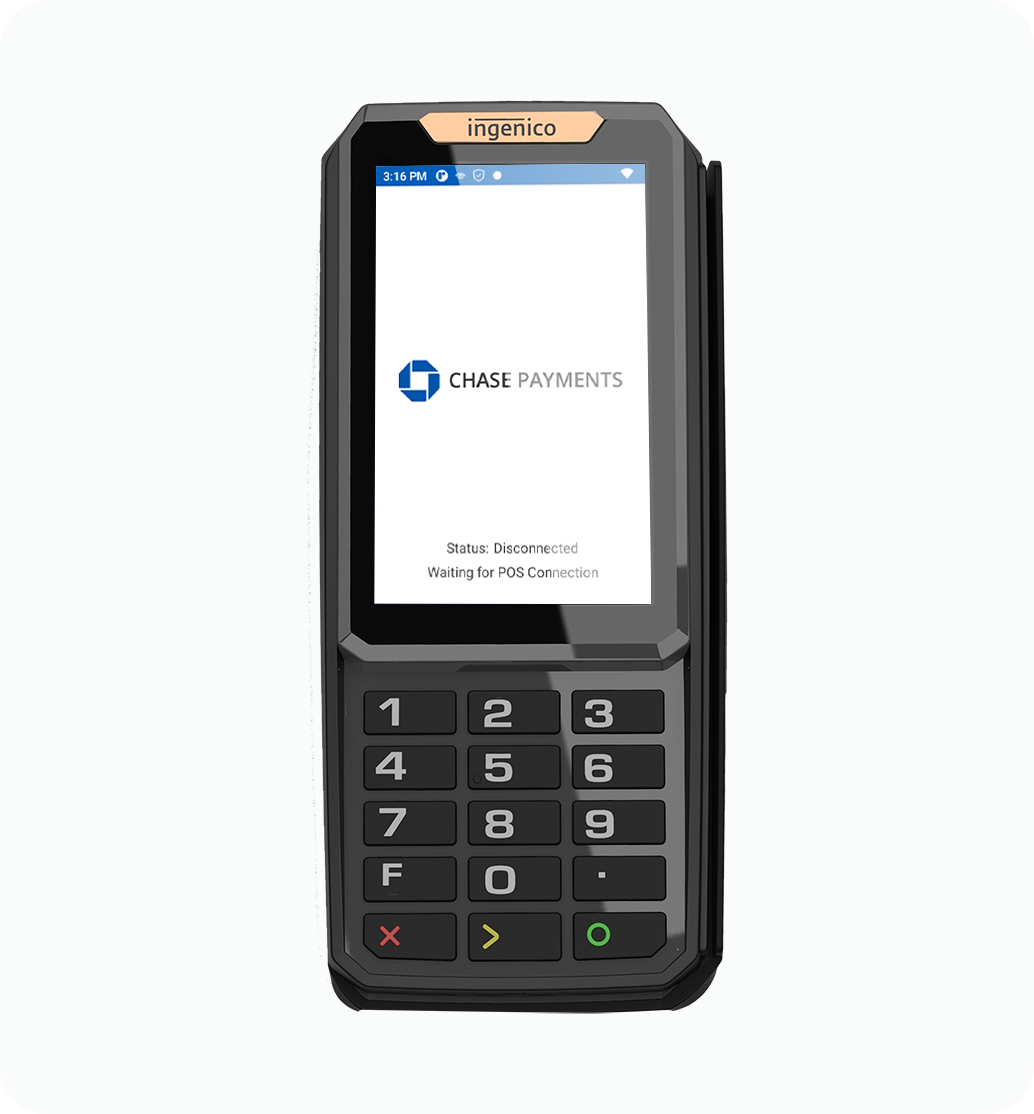

Ingenico AXIUM RX5000
Ingenico AXIUM RX5000
- Ideal for high volume in-store experiences, drive-thru, and self-checkout
- Accepts payments via tap, insert, and swipe
- 4" touchscreen, rear camera with fixed focus reader for QR code scanning
- Small form factor, physical keypad
- Ethernet, USB, and Wi-Fi connectivity
- Android 11, PCI PTS v6
- Size: 6.9 x 3.1 x 1.45" (176.5 x 79 x 37 mm)
- Integrated stand available, sold separately

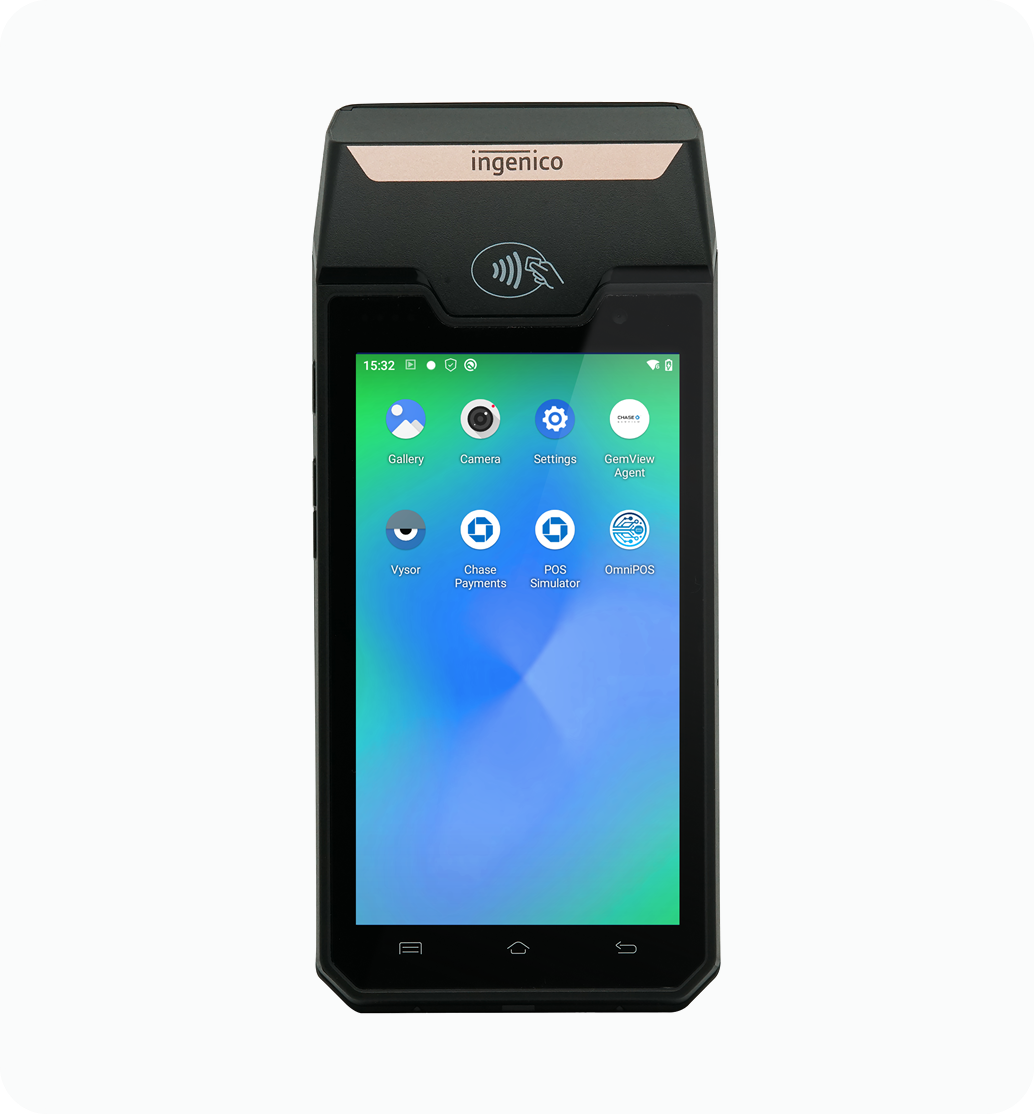

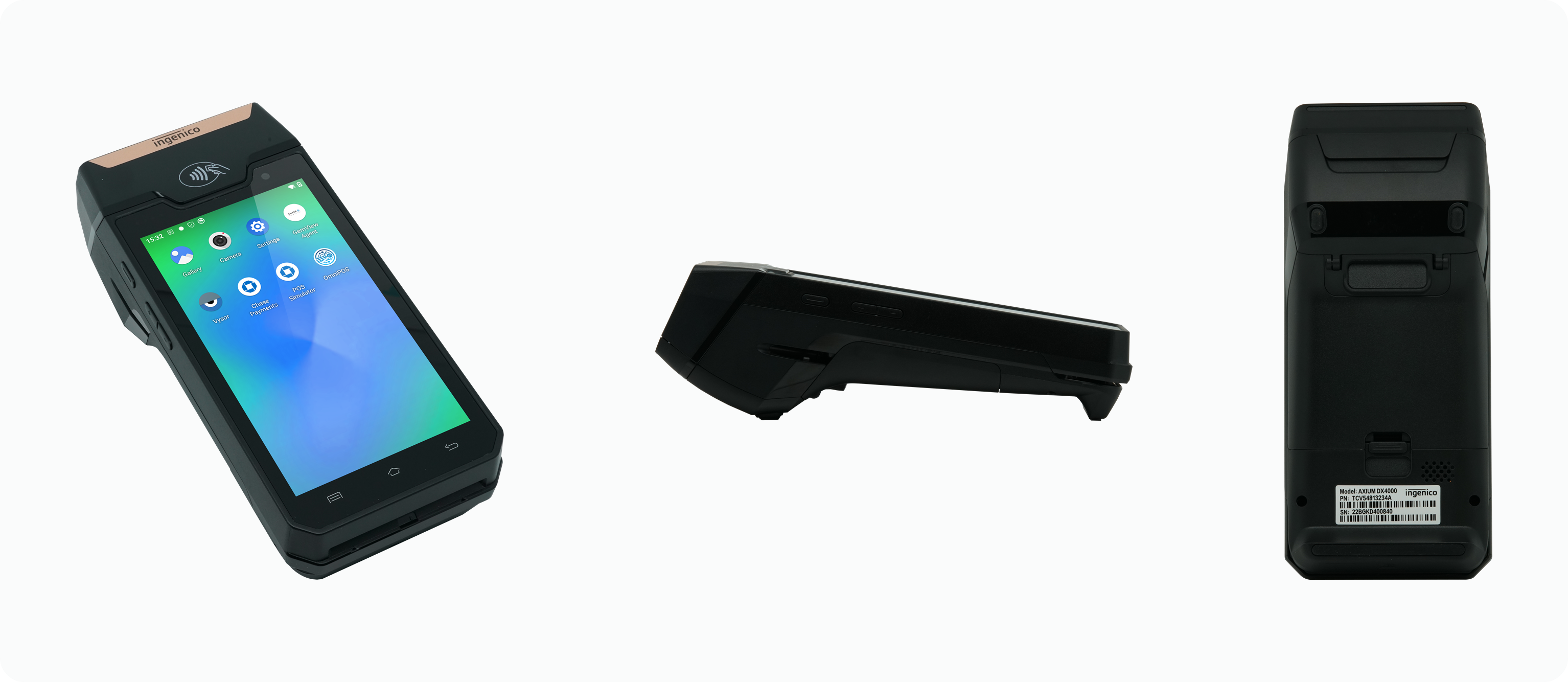

Ingenico AXIUM DX4000
Ingenico AXIUM DX4000
- Ideal for countertop in-store payments and self-checkout
- Accepts payments via tap, insert, and swipe
- 5" touchscreen, front camera
- Wired terminal with integrated thermal printer
- Ethernet, Wi-Fi, and USB connectivity
- Android 10, PCI PTS v6
- Size: 6.63 x 3.15 x 2.15" (177.6 x 80 x 56.8 mm)
- Integrated stand available, sold separately

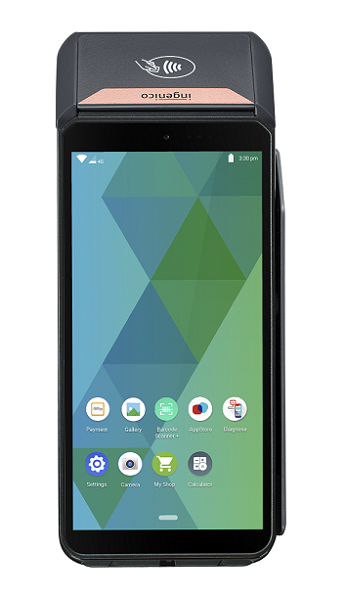

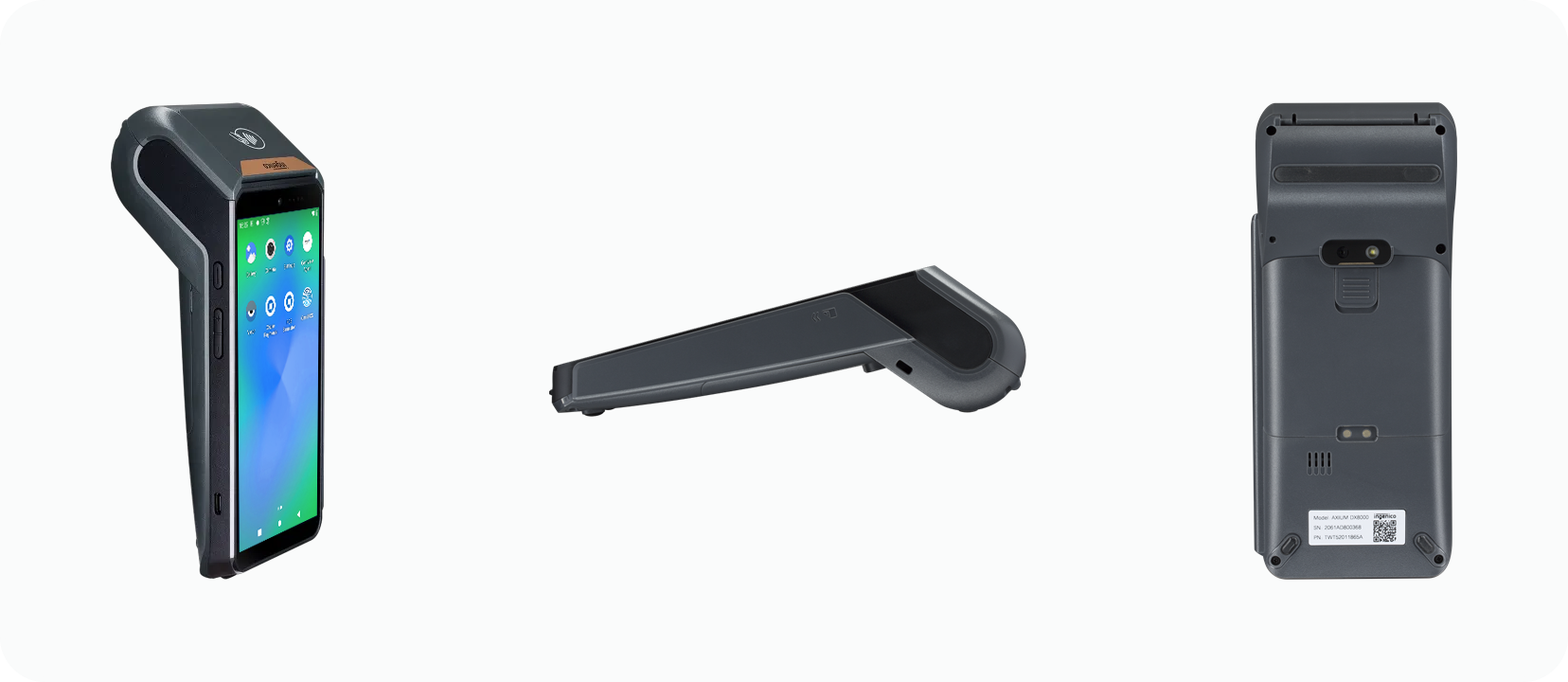

Ingenico AXIUM DX8000
Ingenico AXIUM DX8000
- Ideal for portable service, mobile retail, and standalone
- Accepts payments via tap, insert, and swipe
- Host and launch your Android POS app directly on the terminal
- 6” touchscreen, front and rear cameras, high end bar code readers
- Wireless terminal with integrated thermal printer
- 4G and Wi-Fi connectivity
- Android 10, PCI PTS v6
- Size: 7.79 x 3.26 x 2.46" (198 x 83 x 62.5 mm)
- Integrated base available, sold separately

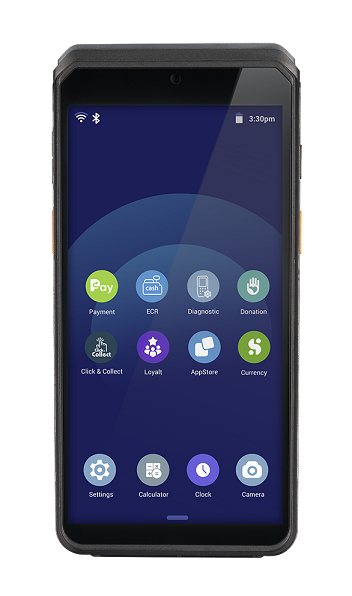

Ingenico AXIUM EX8000
Ingenico AXIUM EX8000
- Ideal for mobile retail and line busting
- Accepts payments via tap, insert, and swipe
- Host and launch your Android POS app directly on the terminal
- 6" touchscreen, front and rear cameras, high end bar code readers
- Wireless terminal with slim form factor
- 4G and Wi-Fi connectivity
- Android 10, PCI PTS v6
- Size: 6.69 x 3.17 x 0.75" (170 x 80.6 x 19 mm)
- Integrated base available, sold separately
