Terminal tipping using GetTipAmount

The GetTipAmount operation allows you to collect a tip on the terminal independent of a sale transaction. The operation prompts the Payment Terminal Application to display options to tip on the terminal based on a set amount and return a response with a tip amount that the point-of-sale (POS) application adds to a subsequent sale transaction.

The Payment Terminal Application supports ad hoc tip capture through the GetTipAmount operation. This operation enables the POS application to request that the Payment Terminal Application display the Tip Prompt screen at any time, without requiring an associated payment transaction. It is intended solely to capture a tip amount based on a specified reference amount.

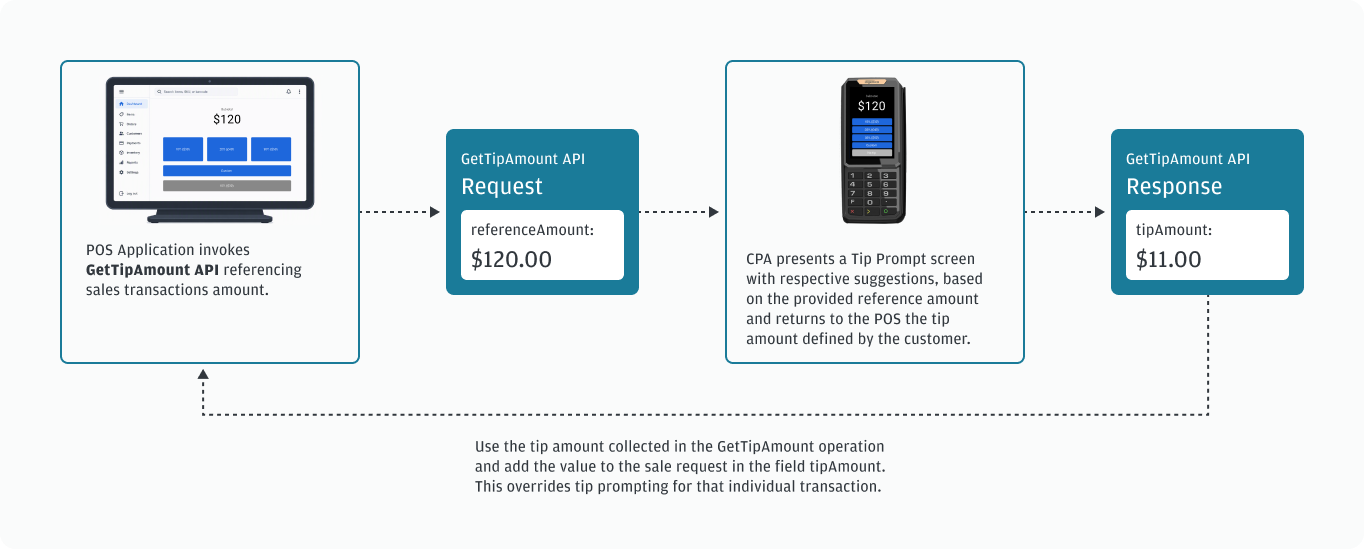

The following is the GetTipAmount operation flow:

Tipping payment journeys

The following list describes common tipping payment journeys your POS application supports, particularly in scenarios where the tip is captured separately from, or needs to be allocated across, one or more subsequent sale transactions.

Each journey outlines a typical flow and where the GetTipAmount operation fits so you can implement the right logic for split checks, multiple tenders, large tips, standalone tips, or authorize/complete patterns.

Split payments: If a check is split among multiple guests, use the GetTipAmount operation to collect tips from some or all cardholders, then apply those tips to the corresponding subsequent sale transactions for each cardholder.
Centralized tip capture for multiple methods of payment (MOP): When a single order is paid using multiple MOPs, the POS application captures the tip once based on the full reference amount and then determine how to associate that tip with each payment method tender.
Handle large tips: In cases where the tip is much larger than the subtotal of the meal, such as when the cardholder uses a gift certificate that covers an expensive meal and tips on the original amount, or when a patron leaves a large custom tip, collect these tips with a separate operation and include them in the subsequent sale.
Run a tip as a separate transaction: The POS application completes the sale transaction, uses the GetTipAmount operation to collect the tip, and then executes a subsequent sale transaction for just the tip amount.
Authorize and overcapture: The POS application authorizes the subtotal of the transaction, runs the GetTipAmount operation to capture the tip, and then sends a completion for the subtotal and the tip amount.

Other payment journeys

The GetTipAmount operation allows for customization of UI labels (refer to guidanceText fields in the tip parameter table), giving you the option to use this operation for non-tip related use cases. Examples:

Deposit or prepayment amount: Allow the consumer to select an upfront deposit amount before a booking, rental, reservation, or an order is finalized.
Increase the payment amount: Ask the consumer whether to round up the transaction total or add set amounts to a transaction to support a campaign or internal program.

API integration

The GetTipAmount operation prompts the Payment Terminal Application to present options for customer input. It is a standalone request/response flow separate from any payment operation. The operation follows the same tip processing behavior on a single operation as when the Payment Terminal Application parameter TIP = 1. While the prompt is active, no other operation starts.

GetTipAmount can be used two ways:

Use tip configuration parameters to present preset tipping prompts on the terminal. This approach simplifies construction of the GetTipAmount API request message for your POS application.
Use additional fields in the API request to ignore or override configured tipping parameters. This approach provides your POS application with control over the operation to change tipping prompts strategically.

GetTipAmount renders three tipping amounts or percents on the payment terminal display.

The following table lists and defines the relevant tip parameters for tipping on the terminal.

Relevant tip parameters
Parameter	Description	TMS	API	Format	Value
TIP	Controls tip prompting.	Y	Y	Num	0=No Tip (default) 1=Prompt for tip on the terminal
TIPCALC	Defines how the tip suggestions are calculated.	Y	N	Num	0=Based on the transaction amount (default) 1=Based on transaction amount + tax(es)
TIPOPT	Controls additional options for tip prompting when tipping on the terminal is enabled (parameter TIP=1).	Y	Y	Num	0=suggested percentages (default) 1=suggested amounts 2=suggested amounts up to a threshold, and then suggested percentages, for example., tipping dollar amounts up to $10 and percentages above
TIPTHR	Only used in conjunction with parameter TIPOPT=2 to set the threshold amount.	Y	Y	Float	Default: 2000 ($20.00)
NOTIP	Controls the display of the “No Tip” option on the terminal. Only applies when parameter TIP=1.	Y	Y	Num	0=Screen does not include “No Tip” button 1=Screen includes button with “No Tip” 2=Screen includes button with “Cash Tip” Default: 1
STATICTIP	Defines a static tip percentage for the requestedAmount on every transaction when tipping on the terminal is enabled (parameter TIP=1). Percentages are expressed with 3 implied decimals; for example, 10000 represents 10.000%.	Y	Y	Float	0 disables this feature Default: 0
TIPAMT1	Defines suggested fixed tip amount for option 1 when tipping on the terminal is enabled (parameter TIP=1)	Y	Y	Float	Default: 100 ($1.00)
TIPAMT2	Defines suggested fixed tip amount for option 2 when tipping on the terminal is enabled (parameter TIP=1)	Y	Y	Float	Default: 300 ($3.00)
TIPAMT3	Defines suggested fixed tip amount for option 3 when tipping on the terminal is enabled (parameter TIP=1)	Y	Y	Float	Default: 500 ($5.00)
TIPPERC1	Defines suggested tip percentage for option 1 when tipping on the terminal is enabled (parameter TIP=1)	Y	Y	Float	Default: 15000 (15.000%)
TIPPERC2	Defines suggested tip percentage for option 2 when tipping on the terminal is enabled (parameter TIP=1)	Y	Y	Float	Default: 18000 (18.000%)
TIPPERC3	Defines suggested tip percentage for option 3 when tipping on the terminal is enabled (parameter TIP=1)	Y	Y	Float	Default: 20000 (20.000%)
TIPGUIDE	Controls how the guide text below the primary tip suggestions are presented on the tipping buttons. Only applies when parameter TIP=1.	Y	Y	NUM	0=The guide text succeeding the button displays the final amount including tax and tip. This applies to both percentage and amount suggestions, controlled by the parameter TIPOPT. (default) 1=The guide text succeeding the button displays the tip amount calculated per the percentage on the button. This only applies to the percentage suggestions. If TIPOPT = 1 (prompt for suggested amounts), the guide is not shown.
TIME1		Y	Y	NUM	0 means no timeout Default=30

The following table lists and defines the GetTipAmount API request fields:

GetTipAmount request fields
Request field	Required or optional?	Description
`operation`	Required	Must be sent with the value `GetTipAmount`.
`referenceAmount`	Optional with conditions	Required for percentage tip suggestions. Amount used to calculate tip suggestions. This value should not include tax. If omitted, `taxAmount` is ignored. Expressed in merchant base currency with 2 implied decimals; for example, 1000 represents 10.00.
`taxAmount`	Optional	When provided, `taxAmount` may be used in tip suggestion calculations depending on `tipCalc` or the equivalent TIPCALC parameter. Expressed in merchant base currency with 2 implied decimals.
`tipCalc`	Optional	Overrides the TIPCALC parameter when included. 0=calculate suggestions using referenceAmount only. 1=calculate suggestions using referenceAmount plus taxAmount.
`tipOpt`	Optional	Overrides the TIPOPT parameter when included. 0=suggested percentages. 1=suggested amounts. 2=suggested amounts up to the threshold and suggested percentages above the threshold.
`tipThr`	Optional	Overrides the TIPTHR parameter when included. Used as the threshold for tipOpt = 2. Expressed in merchant base currency with 2 implied decimals.
`noTip`	Optional	Overrides the NOTIP parameter when included. 0=No Tip button isn't displayed 1=display No Tip button 2=display Cash Tip button
`tipAmt1`	Optional	Overrides the TIPAMT1 parameter. Values are expressed in minor units of the merchant's base currency; for example, 500 represents USD 5.00.
`tipAmt2`	Optional	Overrides the TIPAMT2 parameter. Values are expressed in minor units of the merchant's base currency; for example, 500 represents USD 5.00.
`tipAmt3`	Optional	Overrides the TIPAMT3 parameter. Values are expressed in minor units of the merchant's base currency; for example, 500 represents USD 5.00.
`tipPerc1`	Optional	Overrides the TIPPERC1 parameter. Percentages are expressed with 3 implied decimals; for example, 10000 represents 10%.
`tipPerc2`	Optional	Overrides the TIPPERC2 parameter. Percentages are expressed with 3 implied decimals; for example, 10000 represents 10%.
`tipPerc3`	Optional	Overrides the TIPPERC3 parameter. Percentages are expressed with 3 implied decimals; for example, 10000 represents 10%.
`tipGuide`	Optional	OOverrides the TIPGUIDE parameter. 0=show total amount under suggestions 1=show only the tip amount under percentage suggestions
`guidanceText1`	Optional	Populates the main Tip Screen guidance text. If omitted, Payment Terminal Application displays the default Select a Tip text.
`guidanceText2`	Optional	Populates the Custom Tip Screen guidance text. If omitted, Payment Terminal Application displays the default Enter Tip Amount or Enter Tip Percentage text.
`tipRound`	Optional	Overrides the TIPROUND parameter. 0=disabled 1=round at 1 dollar 2=round at 5 dollars 3=round at 10 dollars
`cancelLabel`	Optional	Overrides the Cancel button label when text is provided.
`timeout`	Optional	Time in seconds to display the form. If omitted, Payment Terminal Application uses the default defined by TIME1.

The following table lists and defines the GetTipAmount API response fields:

GetTipAmount response fields
Response field	Description
`errorMessage`	Optional field that is only returned when there is an error in the API request. For example, `"errorMessage":"The string [tipOpt] does not represent an <Integer> value"`
`merchantID`	The Merchant ID value configured for your merchant account.
`operation`	This field is echoed with the value `GetTipAmount`.
`result`	The following table describes the possible result codes.
`terminalID`	Terminal ID value configured for your merchant account.
`tipAmount`	The tip amount selected by the cardholder. Expressed in the merchant base currency with 2 implied decimals. Example: 1000 represents $10.00
`tipPercantage`	The tip percentage directly selected by the cardholder or calculated from the selected/entered amount. When calculated from the amount, the value of `tipCalc` is used to determine if the percentage should be calculated with reference to the `referenceAmount` alone or including `taxAmount`. Expressed with 3 implied decimals. Example: 10000 represents 10%.

Operation flow

The GetTipAmount operation is a complex operation with a single Payment Terminal Application request and response pair that prompts the consumer on the terminal for a response. The Payment Terminal Application returns the response when one of the following events occur:

Cardholder selects or enters a tip amount
Screen timeout is reached
Cardholder cancels the operation
Operation is cancelled by the POS application

Custom tip flow

When using the GetTipAmount operation, one of the options the cardholder is presented on the Payment Terminal Application is Custom. Selecting Custom allows the cardholder to enter a custom amount or percent.

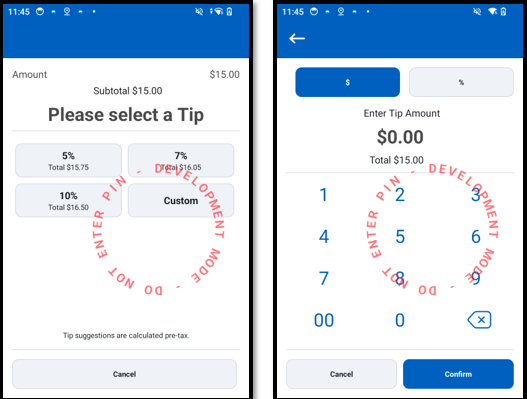

The following images display the Payment Terminal Application tip prompt screen and custom screen. On the custom screen, the cardholder can select $ to add their tip as a dollar amount or select % to add a percent of the subtotal.

Side-by-side examples of the tip prompt screen on a mobile phone

The following example is a custom tip request:

Json

{
  "operation": "GetTipAmount",
  "referenceAmount": "10000",
  "tipCalc": "0",
  "tipOpt": "0",
  "noTip": "1",
  "guidanceText1":"Would you like to leave a tip?",
  "timeout":"30"
}

The following example is a custom tip response:

Json

{
  "merchantID":"9999999",
  "operation": "GetTipAmount",
  "result": "0",
  "terminalID":"002",
  "tipAmount": "200",
  "tipPercentage": "20000"
}

Response handling

The response echoes the operation value GetTipAmount. Regardless of whether you are sending a request for tip amounts or tip percentages, the API always returns both tipAmount and tipPercentage. The field corresponding to the consumer's selection is echoed back, and the other field is automatically calculated as the equivalent value based on the referenceAmount. Both values are returned in scaled minor units:

tipAmount is in cents for example, "200" = $2.00
tipPercentage is in thousandths of a percent, for example "20000" = 20.000%.

For example, with a referenceAmount of $15.00, if the user selects a $2.00 tip ("tipAmount": "200"), the API computes and returns the equivalent percentage ("tipPercentage": "13333") meaning 13.333%.

The following are the result codes for a GetTipAmount transaction. The result code appears in the response field result.

GetTipAmount result codes
Result code	Description
0	OK: the operation completed successfully, and the response includes the selected tip amount.
1	Application Error: These errors represent failures of processes internal to the application. Examples include being unable to create a new thread, file access errors, or loss of communication.
3	Message Error: The request includes an invalid field, a required field is missing, or the request format is invalid.
5	Busy: Another operation is already in progress, and a new operation cannot be started.
10	Timeout: The prompt timed out before input was completed.
11	Cancelled by user: The cardholder pressed the cancel key.
12	Cancelled by POS: The POS application cancelled the operation.

Note

You can set the TIP parameter to prompt for tipping on the terminal (TIP = 1) and still use the GetTipAmount operation on a case-by-case basis as needed. For instance, this can allow you to program your POS application to handle tipping on certain transactions differently.
Use the tip amount collected in the GetTipAmount operation and add the value to the sale request in the field tipAmount. This overrides tip prompting for that individual transaction.

Receipt requirements

Receipt behavior depends on how the POS application applies the returned value to the final transaction. The GetTipAmount operation only returns the selected tip amount and percentage; it does not complete a payment transaction or automatically add the value to a receipt outside the POS-managed flow.

Use cases

The following examples show how different request configurations influence the tip prompt presented to the cardholder. Each use case demonstrates how the POS application overrides configured terminal parameters at runtime by including the corresponding values in the GetTipAmount request.

Overriding TIPPERC1-3 parameter values

Json

{
 "operation": "GetTipAmount",
 "referenceAmount": "1000",
 "tipOpt": "0",
 "noTip": "1",
 "tipPerc": [
   "10000",
   "20000",
   "30000"
 ]
}

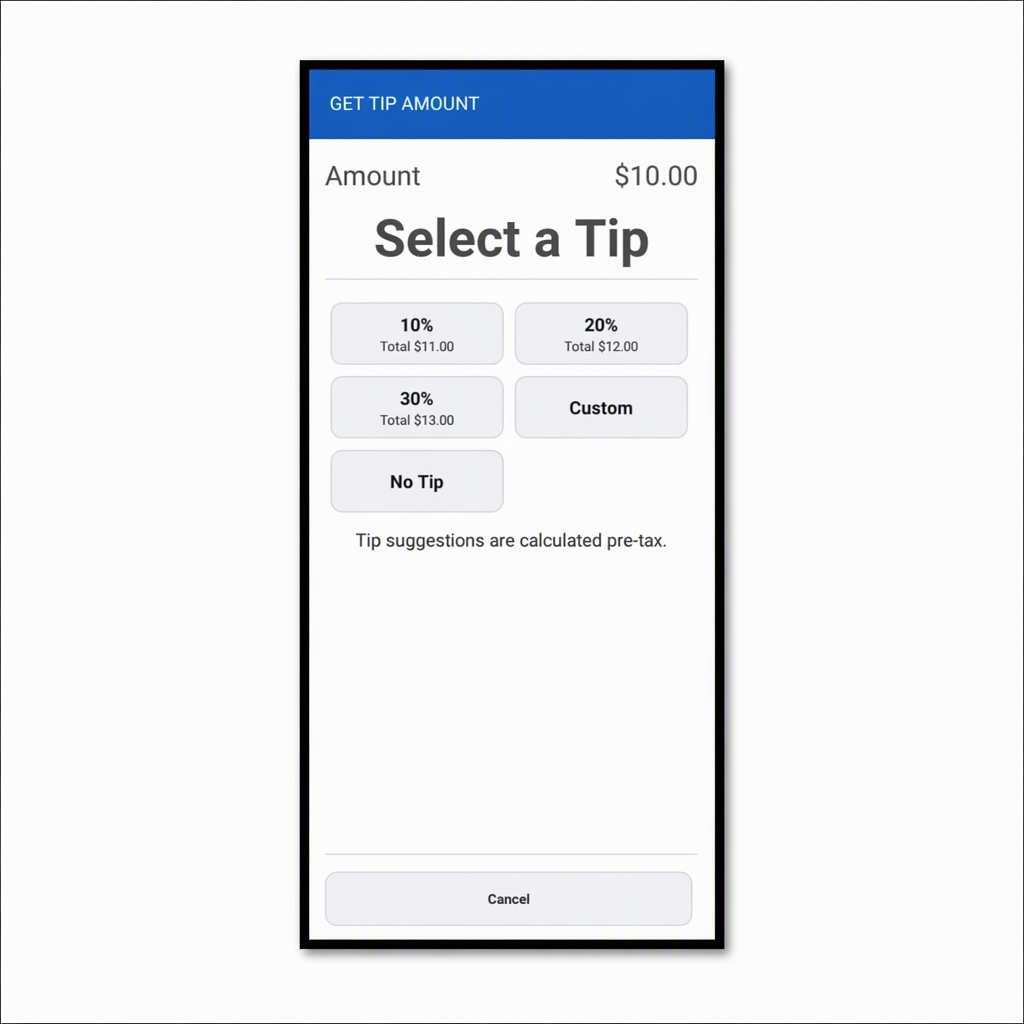

Get tip amount screen on a mobile phone with tip suggestions calculated

This configuration sets tipOpt to 0, which instructs the Payment Terminal Application to present percentage-based tip suggestions.

The request includes tipPerc, so the Payment Terminal Application ignores the configured TIPPERC1, TIPPERC2, and TIPPERC3 parameter values that define tip percentages and uses the percentages supplied by the POS application.

The noTip value of 1 displays a No Tip option on the screen.

Overriding TIPAMT1-3 parameter values

Json

{
 "operation": "GetTipAmount",
 "referenceAmount": "1000",
 "tipOpt": "1",
 "noTip": "1",
 "tipAmt": [
   "100",
   "200",
   "300"
 ]
}

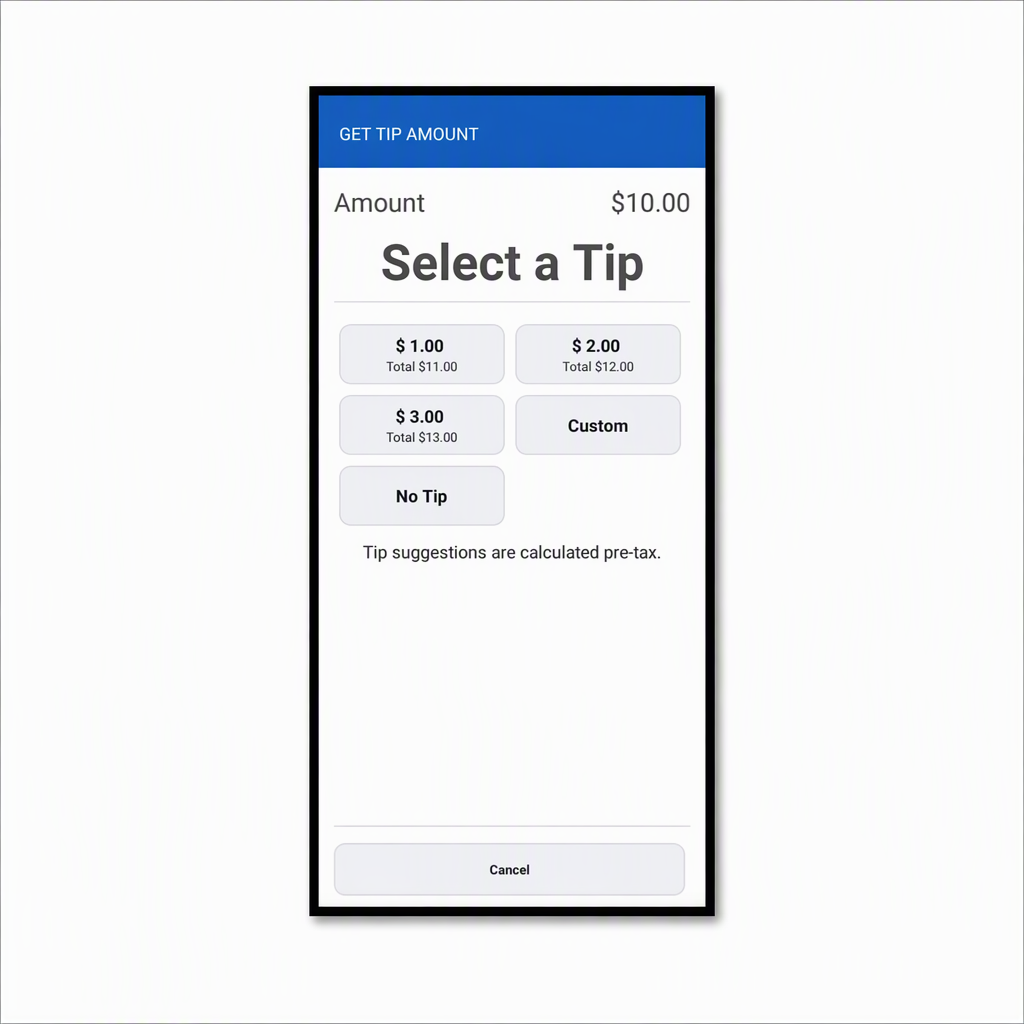

Get tip amount screen on a mobile phone showing suggested tip amounts

This configuration sets tipOpt to 1, which instructs the Payment Terminal Application to present fixed amount tip suggestions instead of percentages.

Because the request includes tipAmt, the Payment Terminal Application uses the supplied amount values in place of the configured TIPAMT1, TIPAMT2, and TIPAMT3 parameters that define tip amounts.

The values are interpreted as merchant base currency amounts with two implied decimals.

Request with the tipOpt field set to use amount suggestions when the value is below a threshold

Json

{
  "operation": "GetTipAmount",
  "referenceAmount": "1000",
  "taxAmount": "200",
  "tipCalc": "1",
  "tipOpt": "2",
  "tipThr": "1500"
}

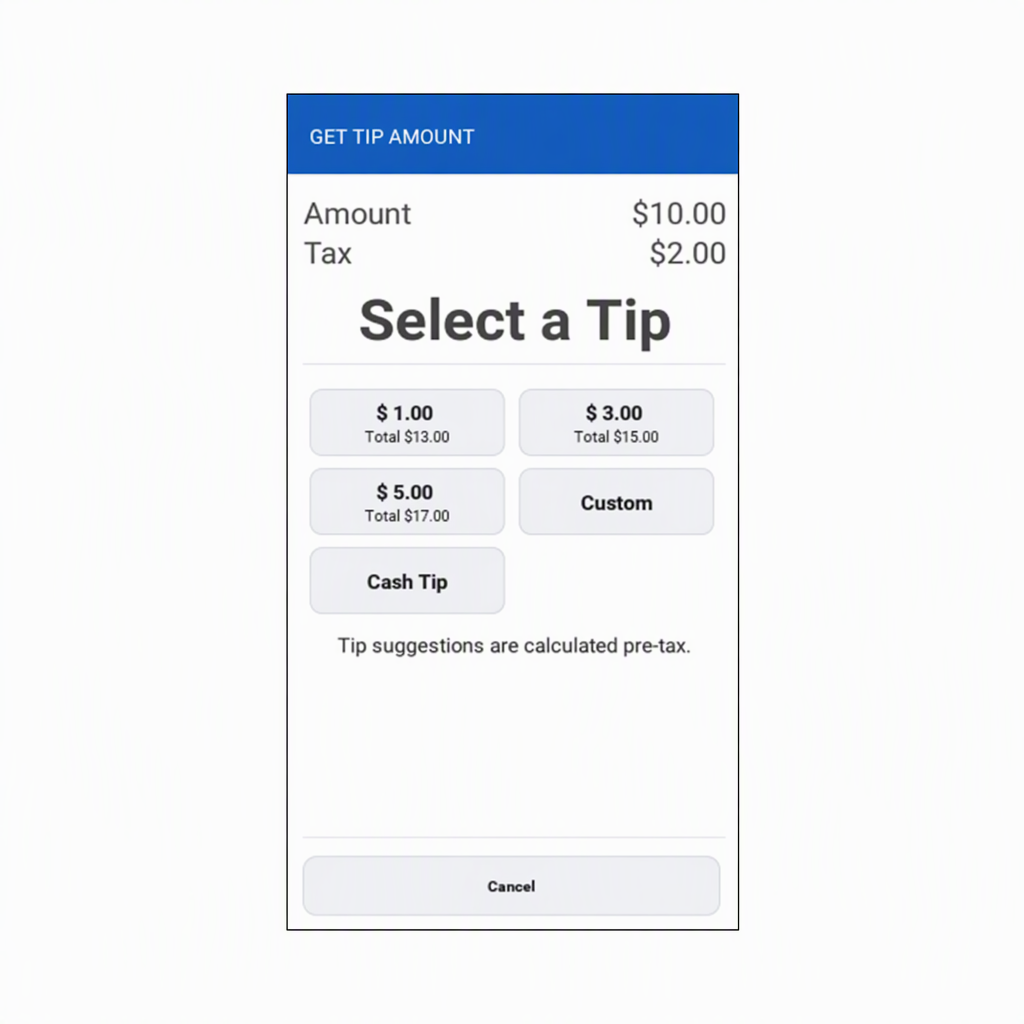

Ge tip amount screen on a mobile phone with suggested tip amounts

This configuration uses tipOpt set to 2 with a tipThr value of 1500. Because tipCalc is 1, the Payment Terminal Application compares referenceAmount plus taxAmount against the threshold.

In this example, 1000 + 200 = 1200, which is below the threshold of 1500, so the Payment Terminal Application presents fixed amount tip suggestions.

Request with the tipOpt field set to use amount suggestions when the value is above a threshold

Json

{
 "operation": "GetTipAmount",
 "referenceAmount": "1000",
 "taxAmount": "600",
 "tipCalc": "1",
 "tipOpt": "2",
 "tipThr": "1500"
}

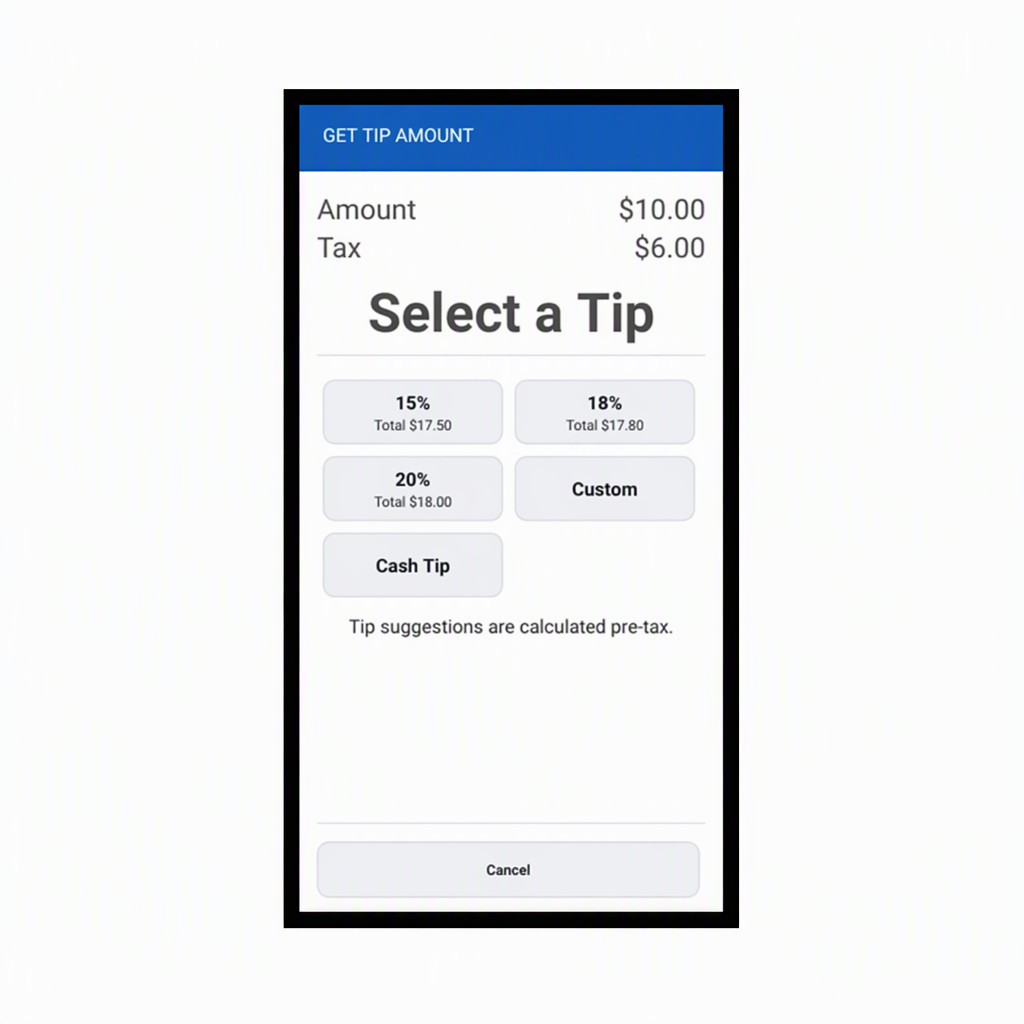

Get tip amount screen on mobile phone with suggested tip amounts

This configuration also uses tipOpt set to 2 with a tipThr value of 1500. With tipCalc set to 1, the Payment Terminal Application evaluates referenceAmount plus taxAmount.

In this example, 1000 + 600 = 1600, which is above the threshold of 1500, so the Payment Terminal Application presents percentage-based tip suggestions.
